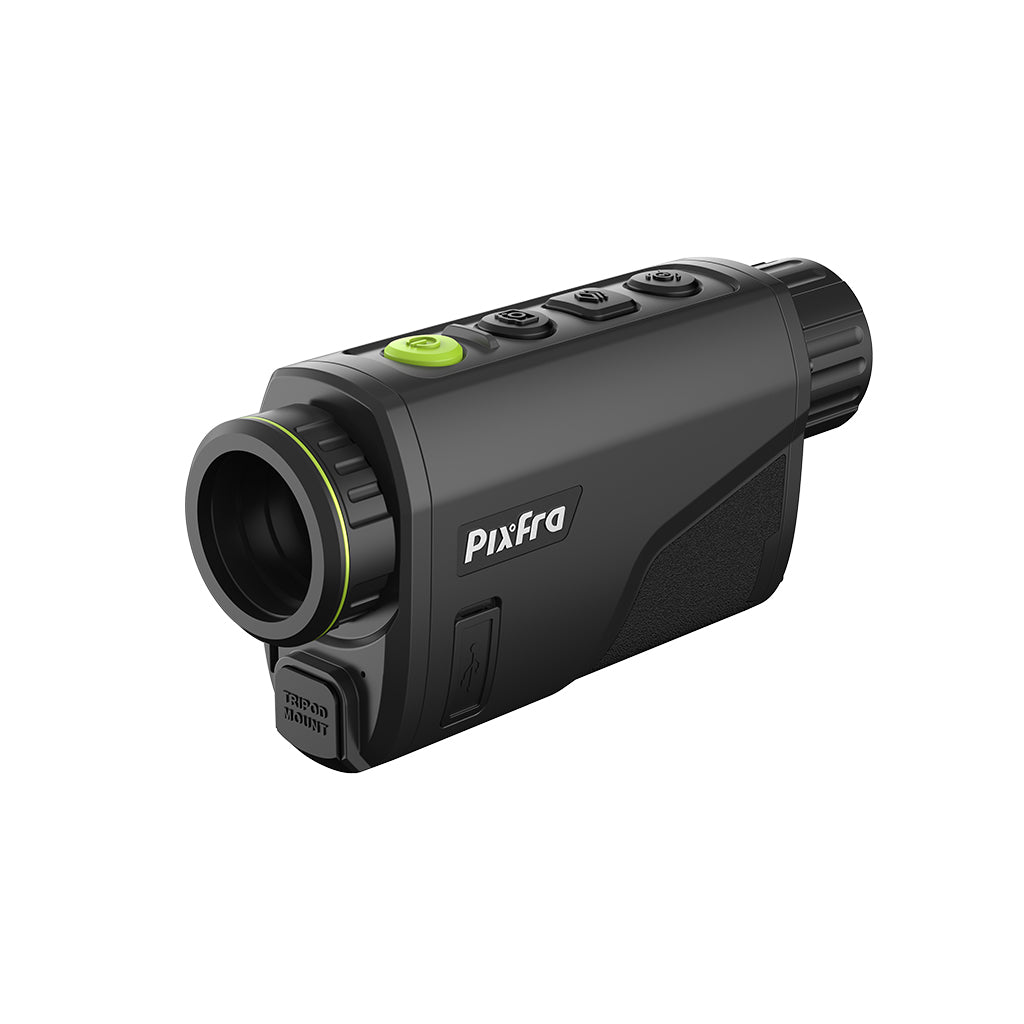

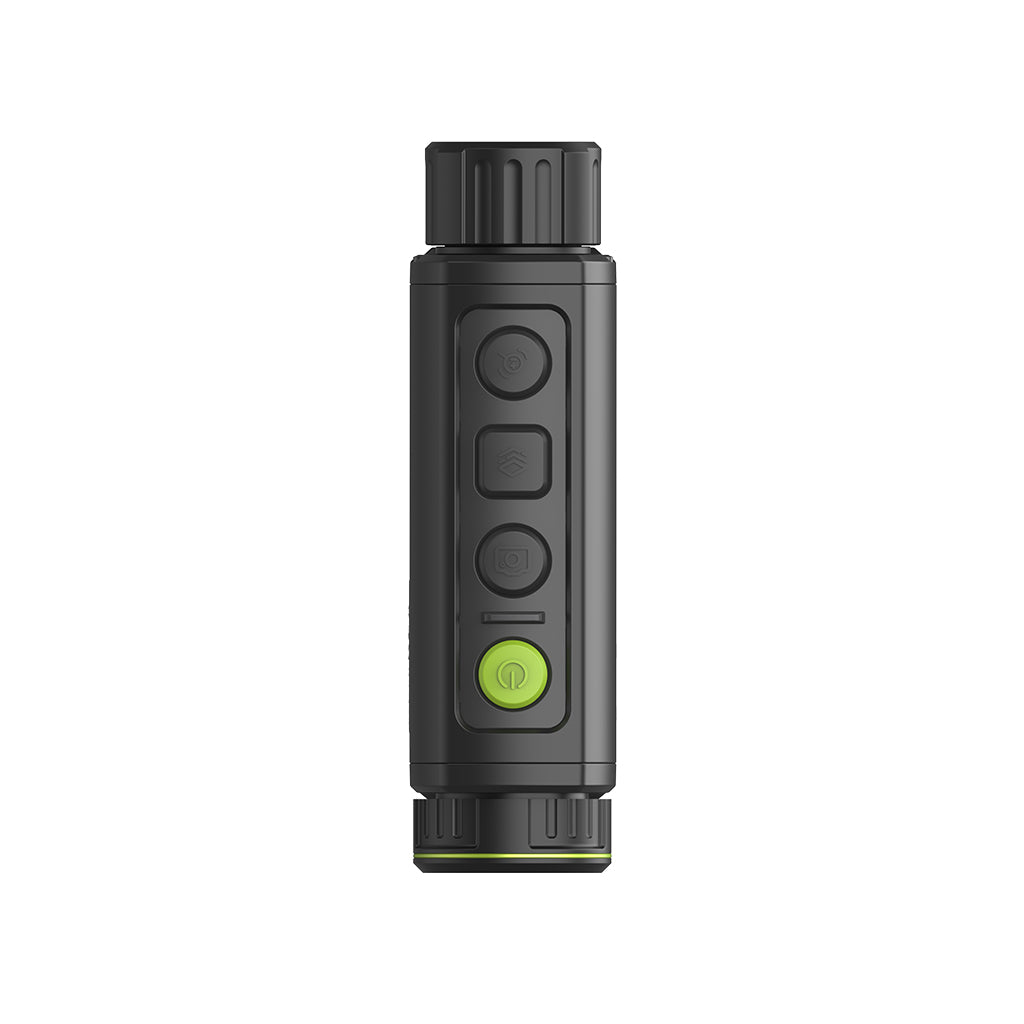

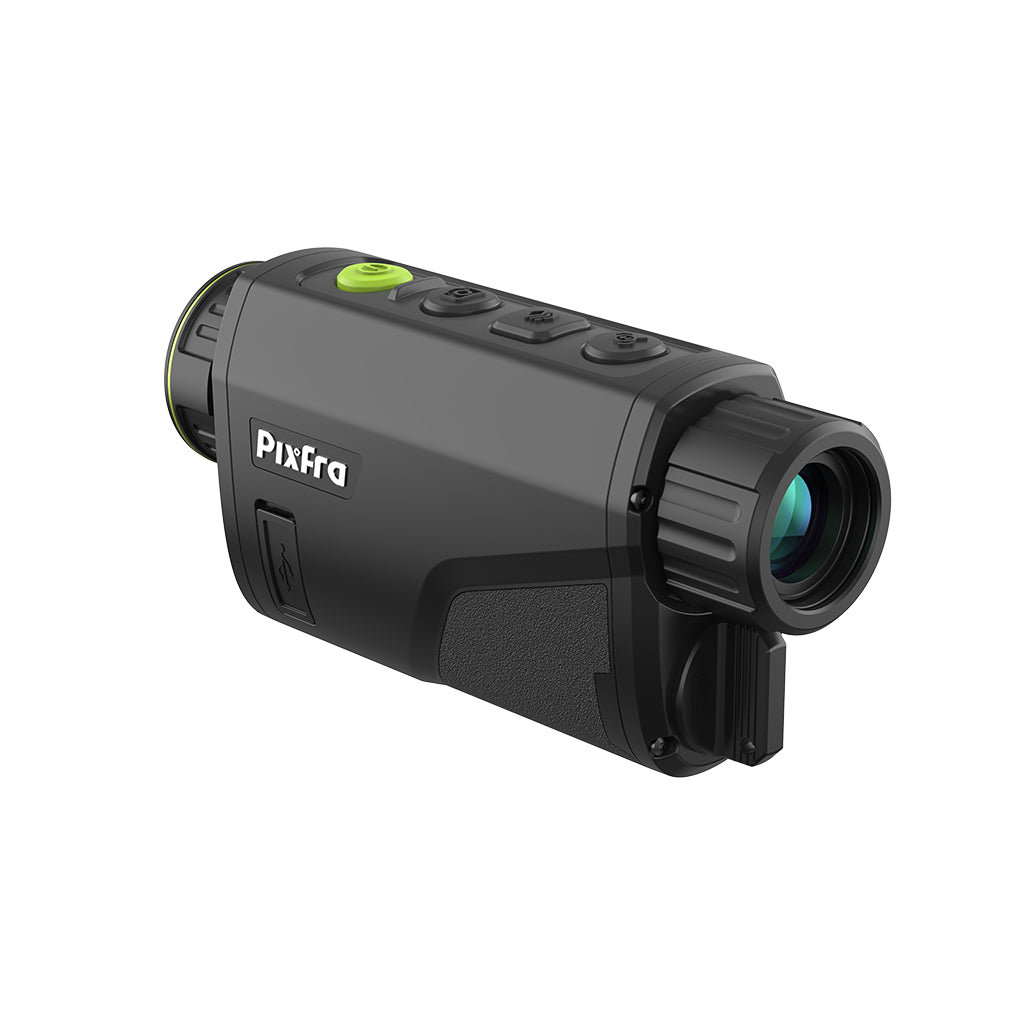

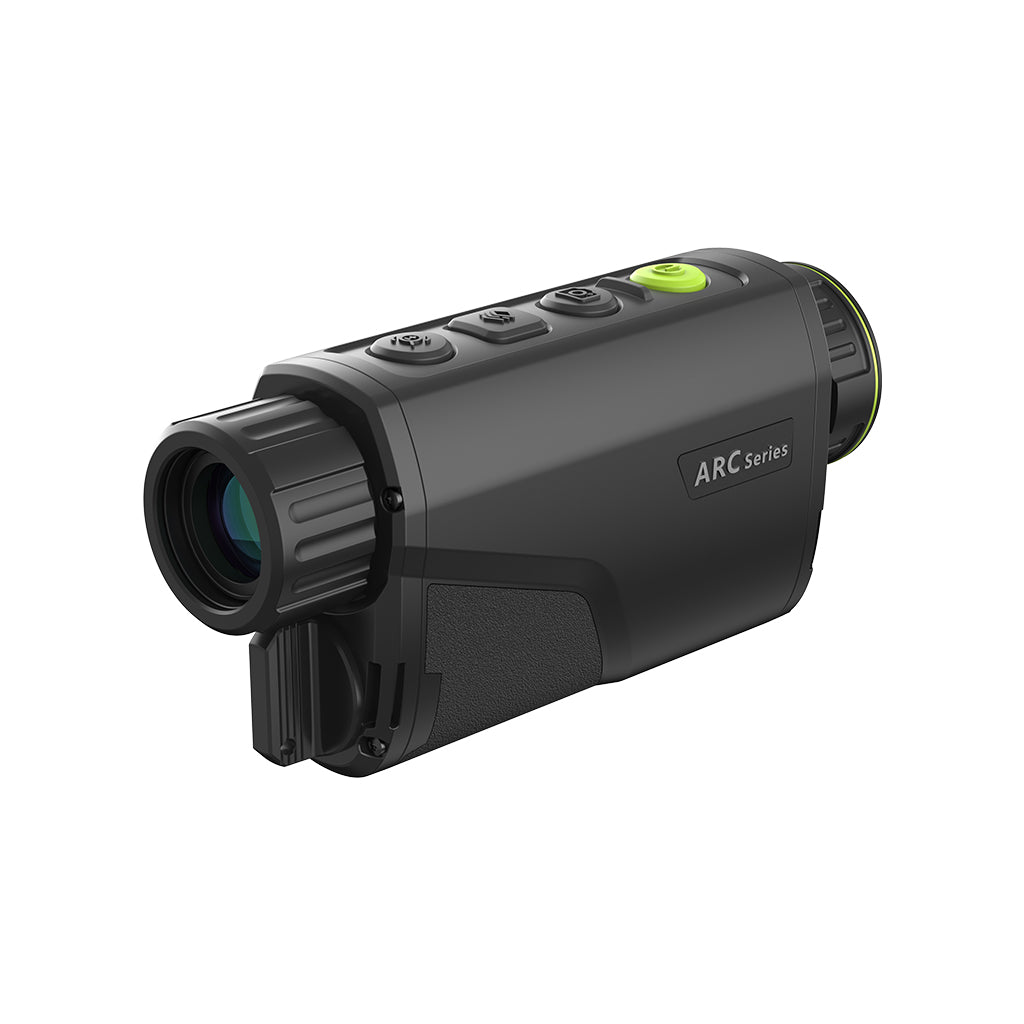

Pixfra Arc A613 30mK Thermal Imaging Monocular

Featuring a highly sensitive 640×512, 12µm, <30mK NETD thermal sensor and a powerful 13mm f1.0 objective lens, the NEW Pixfra Arc A613 achieves a detection range of up to 670m, capable of identifying even the faintest heat signatures in dense woodland, open fields, or wetland habitats.

Ideal for wildlife observation, bat surveying, birding, and conservation projects, this lightweight thermal imaging monocular presents a sharp, full-colour 1440×1080 OLED display, providing ecologists and field researchers with outstanding image clarity for species detection and habitat monitoring.

Designed for Ecology, Birding & Conservation

Engineered with professional ecologists and wildlife researchers in mind, the Arc A613 is a versatile tool for a wide range of fieldwork applications, including habitat assessments, nocturnal species surveys, nest monitoring, and conservation studies. Its tripod-mountable body, expansive 32.3° field of view, and continuous video recording capabilities enable efficient, reliable data collection during extended field sessions.

Extended Wildlife Observation - Day or Night

The Arc A613 comes supplied with two replaceable, rechargeable batteries, offering up to 13 hours of continuous operation - making it ideal for overnight bat surveys, dawn bird watching, or nocturnal mammal tracking without the worry of downtime. Perfect for field ecology projects where uninterrupted monitoring is crucial.

Real-Time Viewing & Collaboration

Facilitating team-based ecological surveys and wildlife observation sessions, the Arc A613 connects to up to four smart devices via the free Pixfra app. This allows multiple researchers or birders to share live thermal footage within 20m, meaning key sightings can be shared instantly, whether you’re recording bat flight paths, spotting elusive birds, or tracking mammals after dark.

Lightweight, Rugged & Weather Resistant

Weighing less than 350g, the Arc A613 is designed for portable wildlife observation and field ecology. Its ergonomic, durable magnesium alloy casing protects against knocks and scrapes, while an IP67 waterproof rating ensures reliable performance in wet, misty, or muddy environments. Ready for use in extreme temperatures from –30 °C to +50 °C, it’s the perfect companion for any bird watching, conservation survey, or ecological monitoring expedition.

For more information see Compact Thermal Imaging for Ecology & Surveying.

Specification

What you get

• Pixfra Arc A613
• 2 x 18650 Li-ion Batteries
• USB-C Dual Bay Charger
• L-Shaped Tripod Adapter
• Rubber Eyecup
• Carry Case
• Carry Pouch
• User Manual
• Lens Cleaning Cloth

Warranty

This comes with a 3 year warranty from Pixfra. See the User Manual that comes with the Pixfra Arc A613.
