Night Master NM1 XL IR LED Illuminator with Rear Focus

Combining cutting-edge LED technology with an ultra-clear 65mm convex lens, the powerful Night Master NM1 XL infrared (IR) illuminator delivers an impressive beam distance of up to 1,200 metres, providing clear identification through night vision devices at ranges up to 500 metres (using IR 850nm). Its lightweight, rugged build features a 30mm tube, ensuring easy compatibility with a wide range of modern night vision systems.

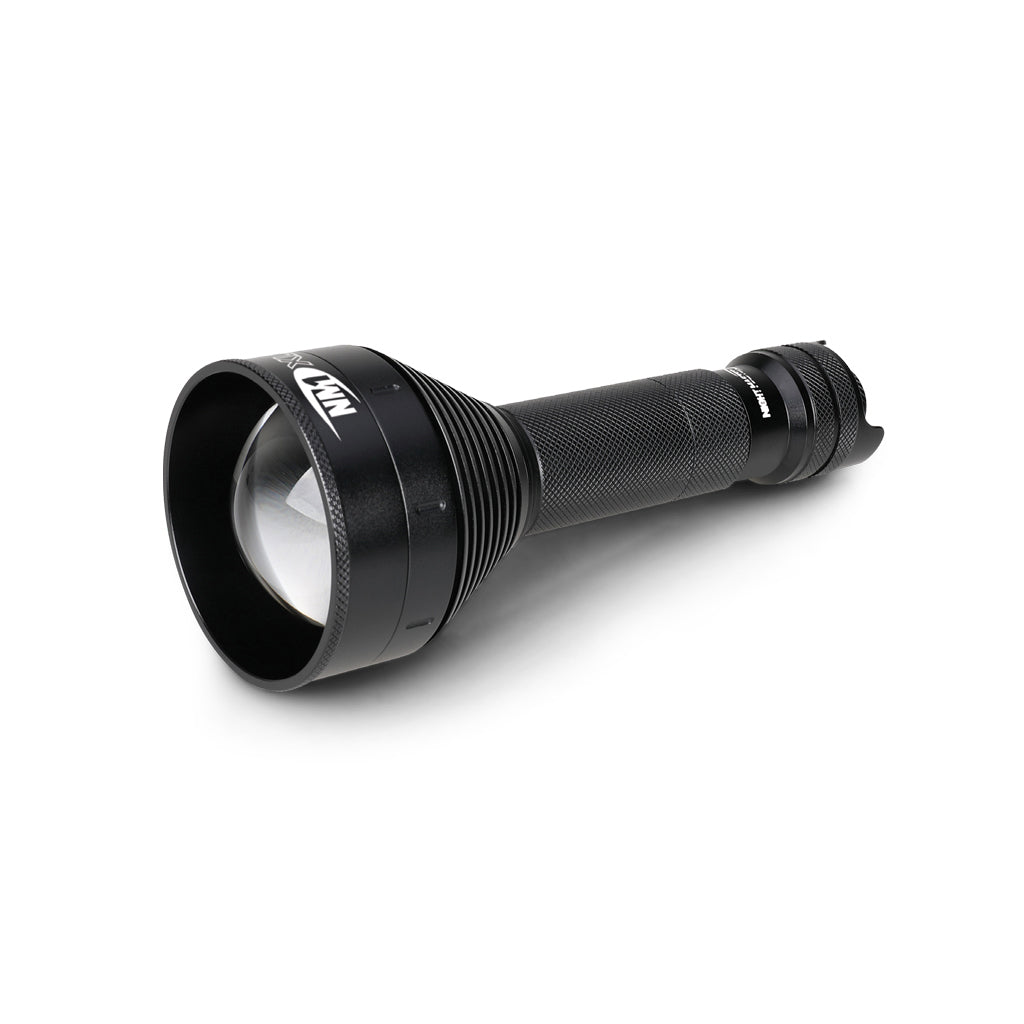

The NM1 XL is equipped with an ultra-clear 65mm convex lens, producing the narrowest and longest-reaching beam in the NM1 series. Designed for long-range observation, it excels in open landscapes, valleys, and wide moorlands where precise, focused illumination at extended distances is needed for surveying nocturnal wildlife or distant habitat features.

The Night Master NM1 range offers practical, easy-access controls designed for nighttime use in remote environments for wildlife monitoring professionals, ecological researchers, and conservation field teams. Beam focus, brightness, and all primary functions are adjusted via a convenient tail-mounted switch, allowing for smooth, one-handed operation in the dark.

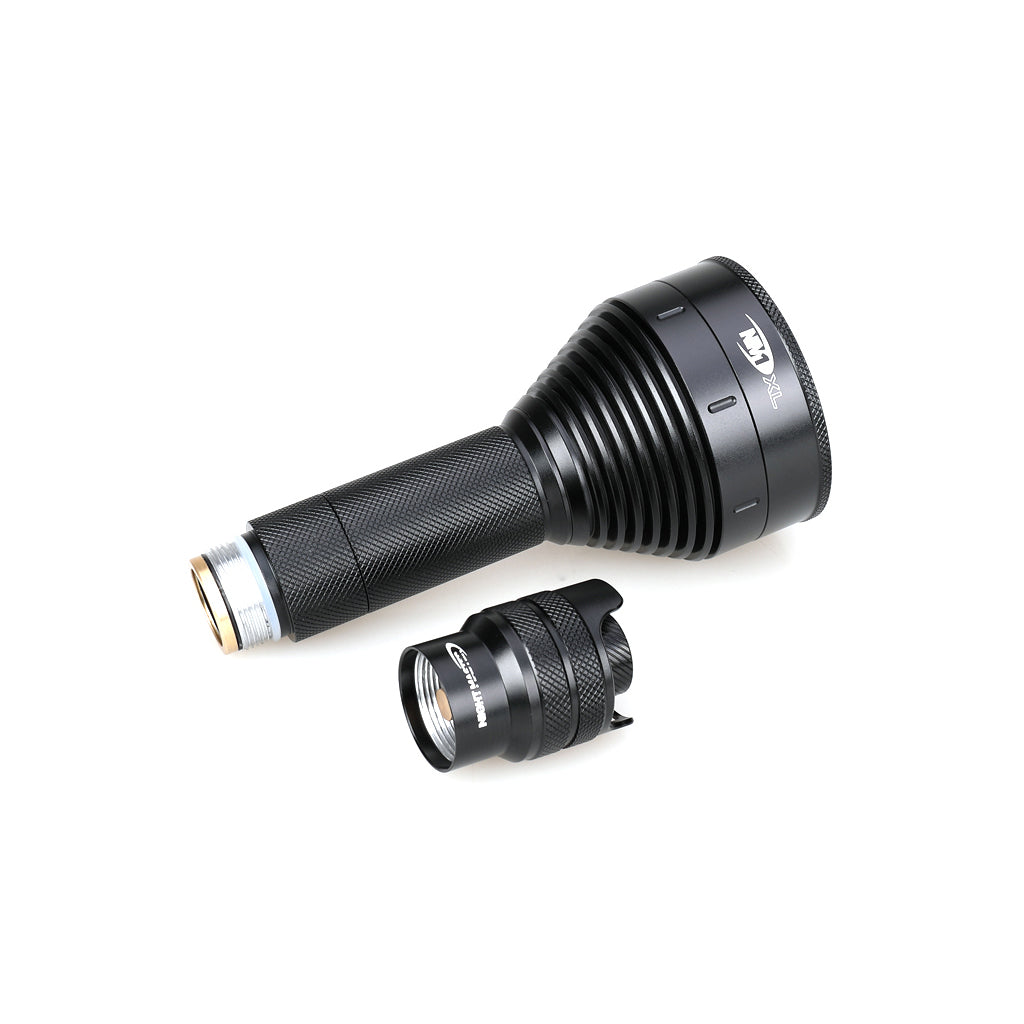

A modular system allows users to swap LED modules in seconds, enabling quick changes between wavelengths or colours without the need for tools. Additionally, separate interchangeable heads and lenses are available, letting you convert your NM1 into different models (CL, SL, or XL) to suit varied fieldwork needs.

Designed for compatibility with digital and tubed night vision devices, the Night Master IR illuminators are available in 850nm and 940nm wavelengths (5000mW). Smooth brightness control and adjustable focus ensure precise, reliable illumination in a range of light-sensitive research and conservation scenarios.

Features

• Long range beam distance up to 1200m
• Easy-swap changeable LED modules

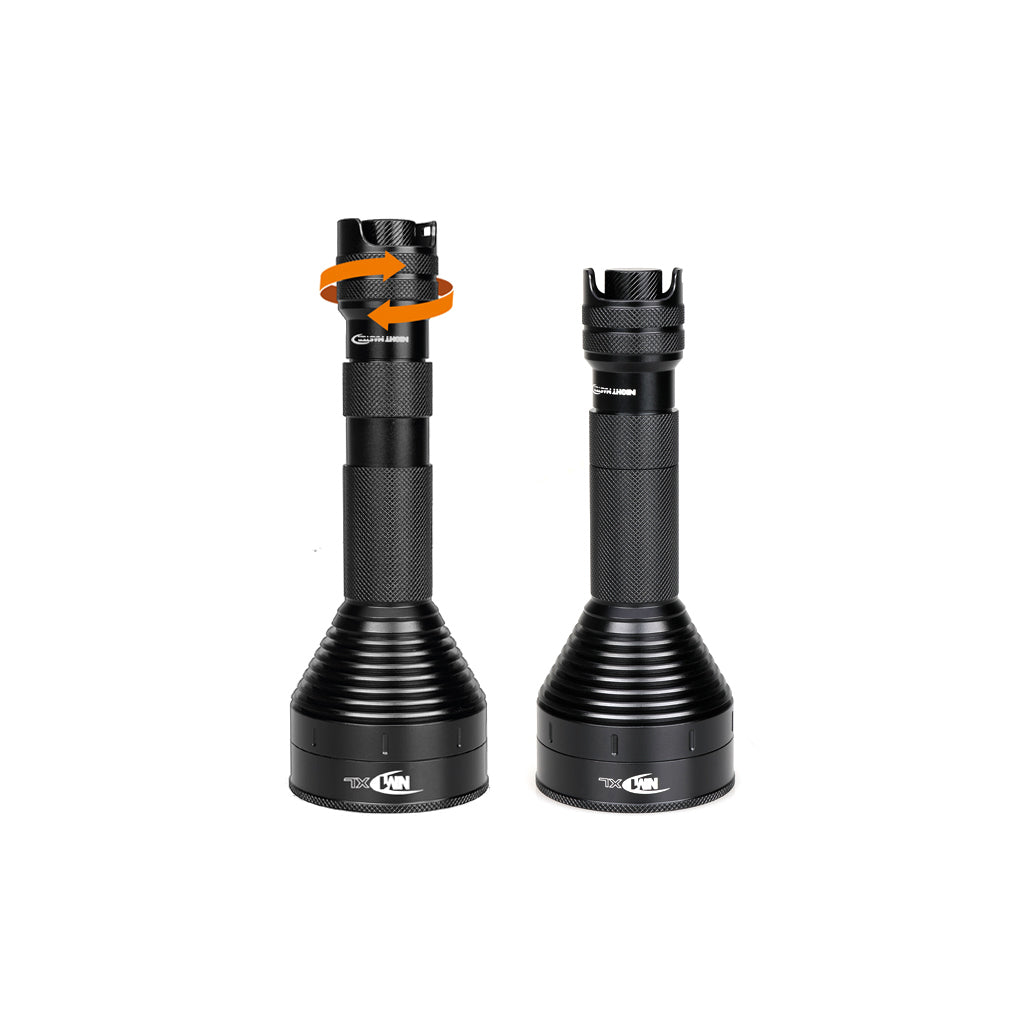

• Wide range of adjustable focus from the tail cap
• Smooth brightness control via the rotary dimmer switch
• Intelligent tail cap with multi-purpose indicator light
• Covert design, no noisy head wobble and quiet on/off switch
• Lightweight rugged body with HA type III anodising

• 30mm body tube for easy scope mounting

• Powered by 1 x 18650 Li-ion battery

• Designed and developed in the UK
• 3-year warranty, limited lifetime warranty

Specification

• LED: High Power Osram LED
• Output (IR): 5 Watt (5000mw)
• Beam Distance: 1200m eye-shine, 500m ID (based on IR 850nm LED)
• Battery: 1 x 18650 Li-ion
• Runtime: <2.5 hrs
• Switch: Intelligent tail cap with multi-purpose indicator light
• Protection: Sealed with o-rings for excellent water resistance (IP65)
• Dimensions: 67.5x30x175mm
• Weight: 342g
• Finish: Rugged body with HA Type III anodising
• Lens: 65mm ultra-clear focusable convex lens

What you get

• Night Master NM1 XL IR Illuminator
• 1 x 18650 Li-ion Rechargeable Battery

• USB Dual Bay Charger
• User Manual
• 3 Year Warranty

Warranty

The NM1 comes with a 3 year warranty from Night Master, see the user manual that comes with the Night Master torch.
