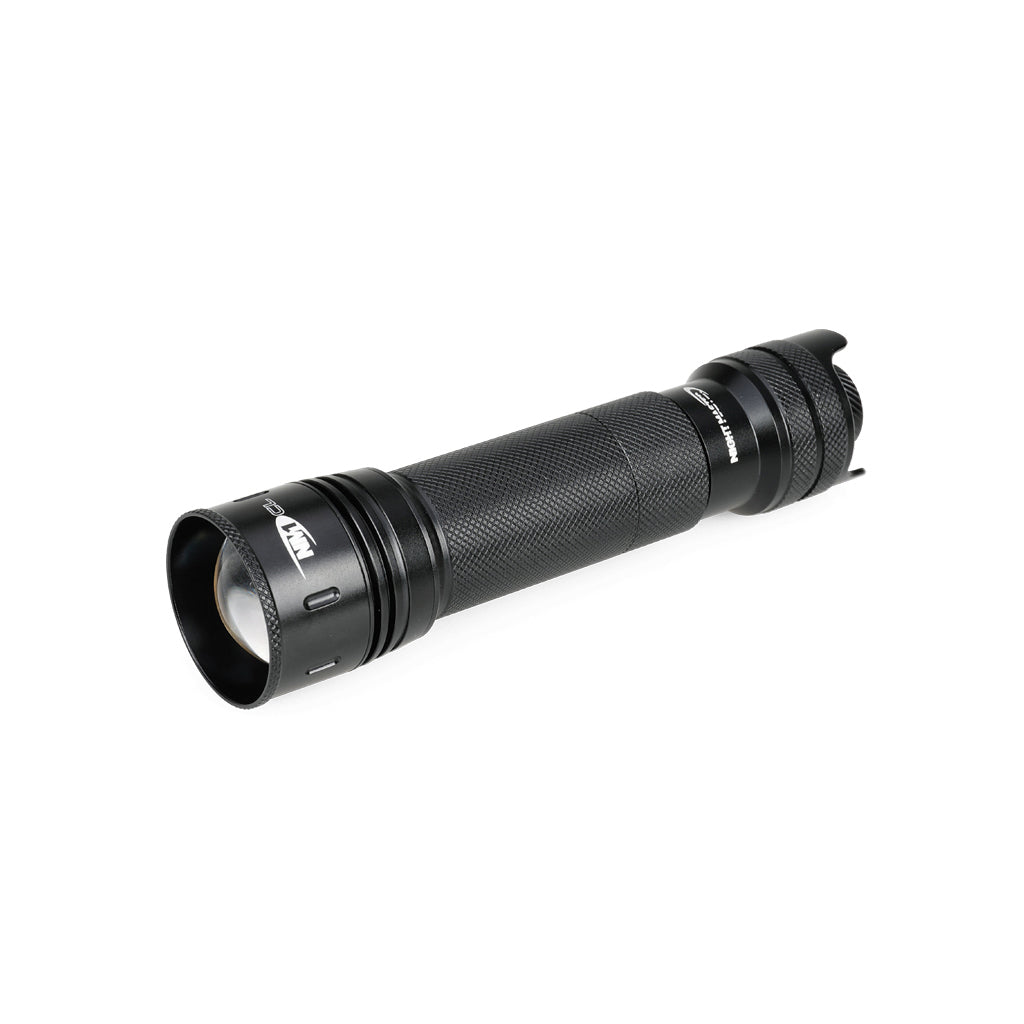

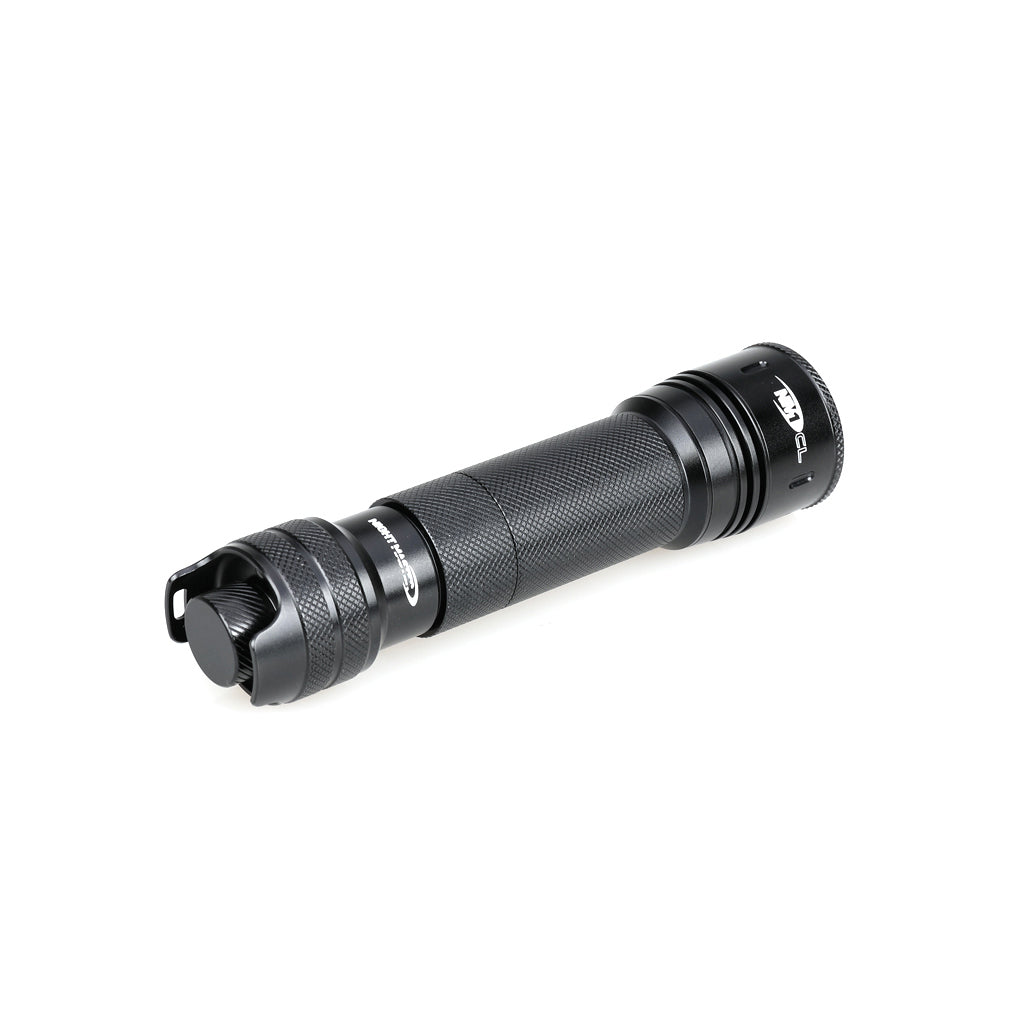

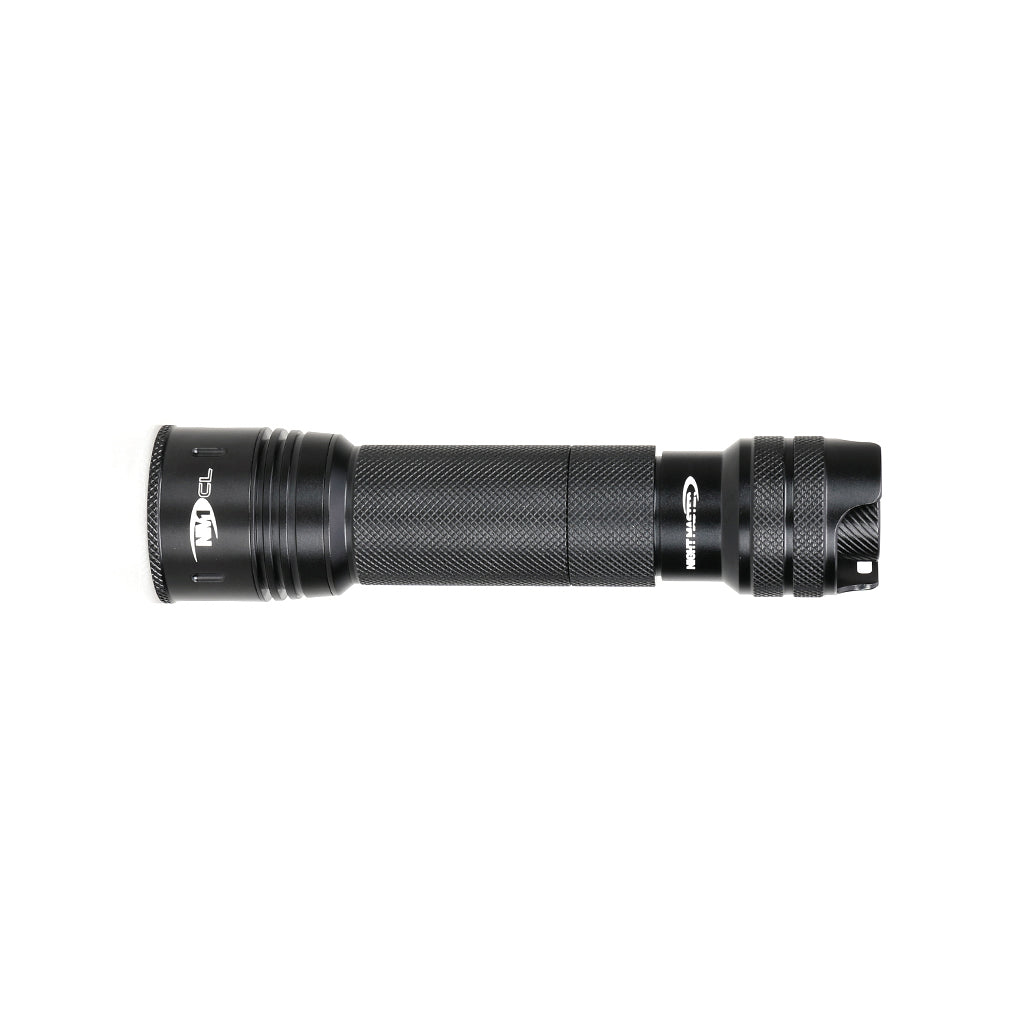

Night Master NM1 CL IR LED Illuminator with Rear Focus

Combining cutting-edge LED technology with an ultra-clear 35mm convex lens, the compact Night Master NM1 CL infrared (IR) illuminator delivers a maximum beam distance of up to 600 metres and clear visibility through night vision devices at ranges up to 250 metres (using IR 850nm). Its lightweight, durable design features a 30mm tube for easy mounting with a variety of modern night vision equipment.

The NM1 CL is equipped with an ultra-clear 35mm convex lens, delivering the widest field of view in the NM1 range. This makes it ideal for close-quarters wildlife observation, illuminating broad areas such as woodland edges, barns, or enclosed habitats where a wide, even beam is essential for monitoring movement at shorter distances.

The Night Master NM1 range offers practical, easy-access controls designed for nighttime use in remote environments for wildlife monitoring professionals, ecological researchers, and conservation field teams. Beam focus, brightness, and all primary functions are adjusted via a convenient tail-mounted switch, allowing for smooth, one-handed operation in the dark.

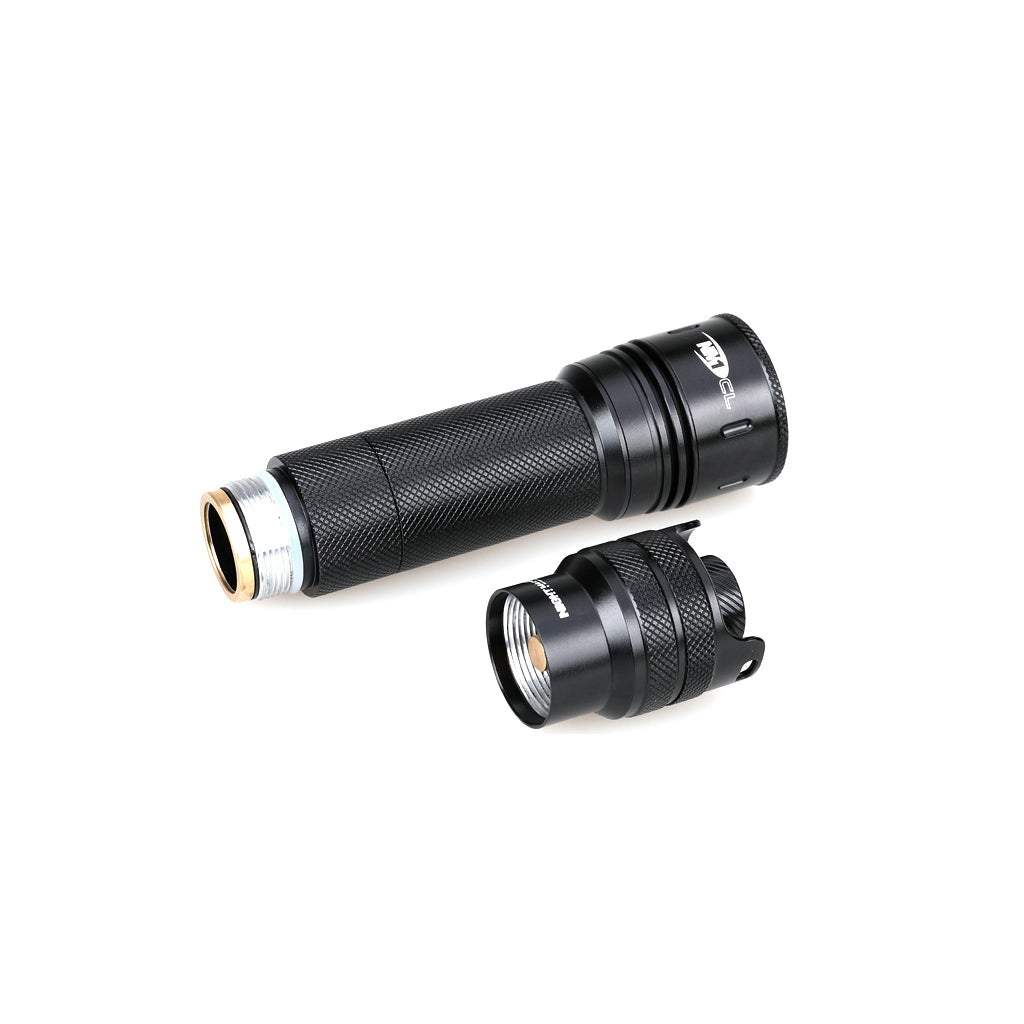

A modular system allows users to swap LED modules in seconds, enabling quick changes between wavelengths or colours without the need for tools. Additionally, separate interchangeable heads and lenses are available, letting you convert your NM1 into different models (CL, SL, or XL) to suit varied fieldwork needs.

Designed for compatibility with digital and tubed night vision devices, the Night Master IR illuminators are available in 850nm and 940nm wavelengths (5000mW). Smooth brightness control and adjustable focus ensure precise, reliable illumination in a range of light-sensitive research and conservation scenarios.

Features

• Long range beam distance up to 600m
• Easy-swap changeable LED modules

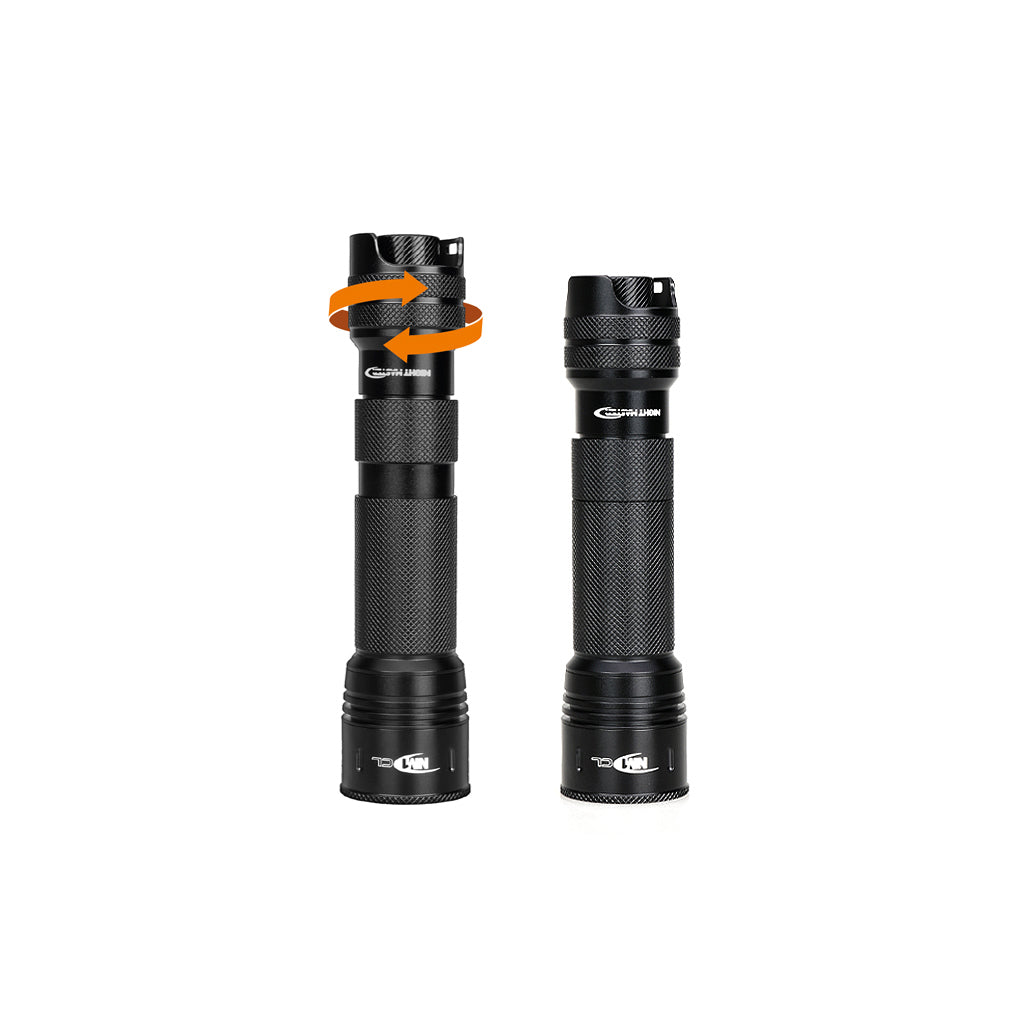

• Wide range of adjustable focus from the tail cap
• Smooth brightness control via the rotary dimmer switch
• Intelligent tail cap with multi-purpose indicator light
• Covert design, no noisy head wobble and quiet on/off switch
• Lightweight rugged body with HA type III anodising

• 30mm body tube for easy scope mounting

• Powered by 1 x 18650 Li-ion battery

• Designed and developed in the UK
• 3-year warranty, limited lifetime warranty

Specification

• LED: High Power Osram LED
• Output (IR): 5 Watt (5000mw)
• Beam Distance: 600m eye-shine, 250m ID (based on IR 850nm)
• Battery: 1 x 18650 Li-ion
• Runtime: <2.5 hrs
• Switch: Intelligent tail cap with multi-purpose indicator light
• Protection: Sealed with o-rings for excellent water resistance (IP65)
• Dimensions: 37.4x30x152mm
• Weight: 182g
• Finish: Rugged body with HA Type III anodising
• Lens: 35mm ultra-clear focusable convex lens

What you get

• Night Master NM1 CL IR Illuminator
• 1 x 18650 Li-ion Rechargeable Battery

• USB Dual Bay Charger
• User Manual
• 3 Year Warranty

Warranty

The NM1 comes with a 3 year warranty from Night Master, see the user manual that comes with the Night Master torch.
