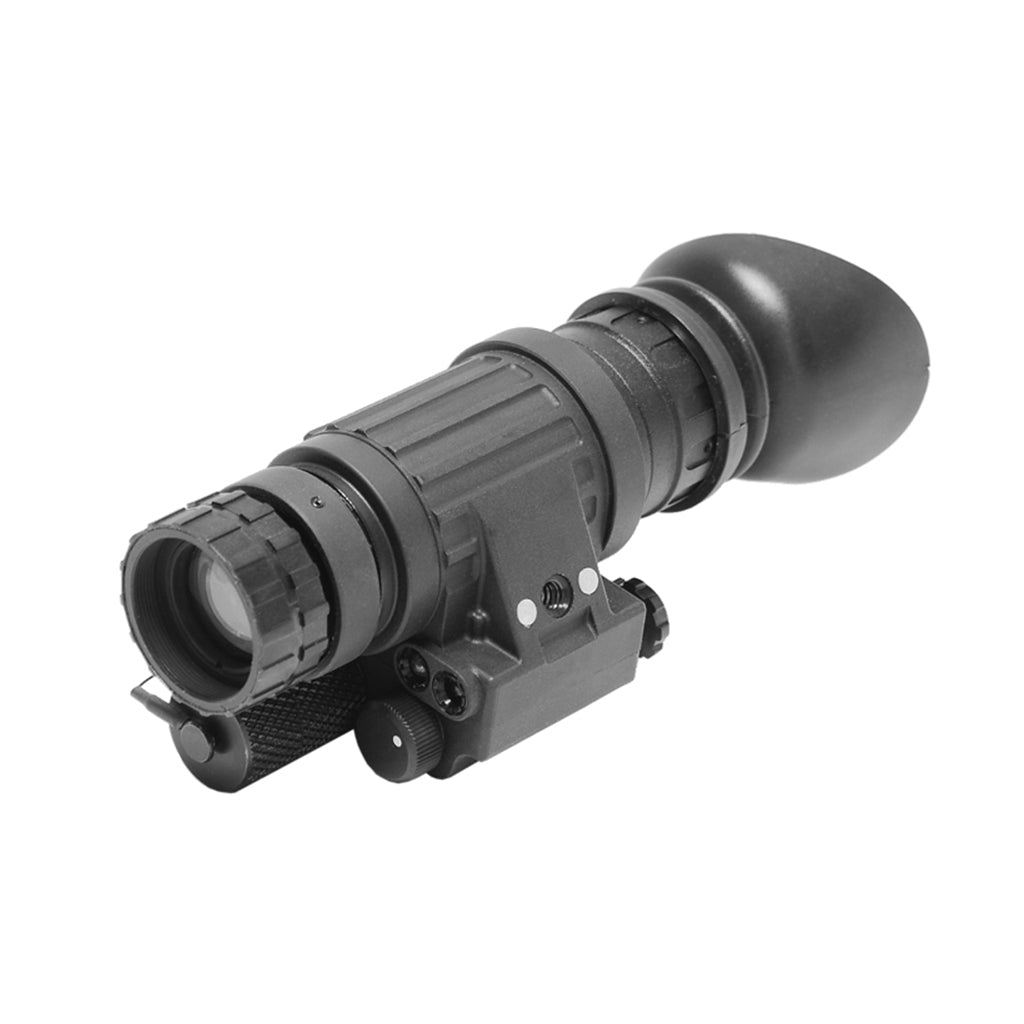

Product image of GSCI PVS-14C Image Intensified Night Vision Monocular - Reveal Wildlife

GSCI

GSCI PVS-14C Image Intensified Night Vision Monocular

Sale price£3,689.95
SKU: PVS-14C-MA1-AG-MGC

CUSTOM-MADE TO ORDER

GSCI night vision devices are custom-made to order, please contact us for buying information and estimated delivery timescale.

Select Tube Colour:

Select Tube Colour

Select Tube:

Select Tube

Manual Gain Control (Brightness Control):

Manual Gain Control (Brightness Control)

Quantity:

Contact

The Reveal Wildlife team has a unique understanding of technology in wildlife observation that cannot be replicated by others. As an indepent family-owned business, based in North Yorkshire, Angie, Tony and Tom have combined decades of technical expertise in infrared (IR) illuminators, night vision and thermal imaging.

If you have any questions regarding products on the Reveal Wildlife website, please make sure to get in touch by completing the form below, emailing us on info@revealwildlife.co.uk or calling 01535 610066 to speak with a member of our friendly team.

We're available Monday to Friday, 8:00am – 4:30pm (UK) and we aim to respond to all emails within 24 hours on normal working days, excluding bank holidays.

The highly versatile PVS-14C system by GSCI can be used as a hand-held monocular in extreme low-light conditions. The PVS-14 is lightweight, compact, rugged and waterproof, this makes the PVS-14 a very impressive all-around night vision device, trusted by the Military.

With a field of view of 40º and a focusing range of 0.25m to infinity the PVS-14 will never let you down in terms of detection, paired up with a long-range you will see clearly out over hundreds of meters.

The PVS-14C uses either 1 x AA or 1 x CR123 battery which will provide the end user with up to 40 hours of runtime, due to intensifier tube using little power to operate. The intensifier tube is available in multiple generations (see below) which are all available in the UK with 7 years limited warranty.

All PVS-14C devices are nitrogen purged, this means the units have been filled with nitrogen in order to prevent moisture ingress and intensifier tube damage.

Technical Data

  • Optical Magnification: 1X
  • Objective Lens Focal Length: 27mm
  • Objective Lens F-number: f/1.2
  • Field of View (FOV): 40°
  • Focusing Range: 0.25m .. Infinity
  • Diopter Adjustment Range: -6 .. +4
  • Built-In IR Illuminator: Yes
  • IR-On Indicator: Yes
  • Automatic Shut-Off System: Yes
  • Any Polarity Battery Insertion: Yes
  • Stow Safety Feature: Yes, Optional
  • Power Source: 1pc AA or 1pc CR123
  • Battery Life: up to 40 hours
  • Environmental Protection: IP66 or Better (Optional)
  • Dimensions: 110x65x55mm
  • Weight: 330 grams
  • Operating Temperature: -40°C .. +50°C
  • Warranty: 7 Years, Limited
  • Export: Available for Export Worldwide
  • Made In Canada, Non-ITAR System

Image Intensifier Tube Options

TUBE GENERATION FOM VALUE MANUAL GAIN
 MA GEN2 FOM <1250 OPTIONAL
MA1 GEN2+ FOM 1250-1599 OPTIONAL
GA2 GEN3 FOM 1600-1799 OPTIONAL
GA3 GEN3 FOM 1800-1999

OPTIONAL
GA4 GEN3 FOM 2000-2399

OPTIONAL
GA5 GEN3+ FOM 2400+

OPTIONAL
EC ECHO FOM 1600-2000 YES
4G 4G FOM 1800+ YES
4G ELITE 4G ELITE FOM 2200+ YES
EC ELITE ECHO ELITE FOM 2000+ YES
4G ELITE PLUS 4G ELITE PLUS FOM 2300 YES

      EC Elite and 4G Elite Plus Tubes are available for professional use only, please contact us for buying information.

      What you get

      • PVS-14C
      • Soft Rubber Eyecup
      • AA Battery Extender
      • Daytime Filter with Training Hole
      • Neck Cord
      • AA High Capacity Battery
      • CR123 High Capacity Battery
      • Soft Carry Pouch
      • Hard Waterproof Case with Soft Padding (not included with MA or MA1 models)
      • User Manual
      • Warranty Activation Form

      Important Information - UK Delivery Only

      Thermal imaging and night vision products are strictly controlled by ITAR regulations and are subject to UK Government Export Licensing Regulations. Dependent on specification, a licence may need to be obtained prior to the export, even temporarily (e.g. holiday), from the UK.

      Additionally, some countries may be embargoed, and no thermal imagers or night vision devices can be taken or exported to them. It is the responsibility of the exporter, whether it be a company or individual, to ensure that such a licence is obtained.
