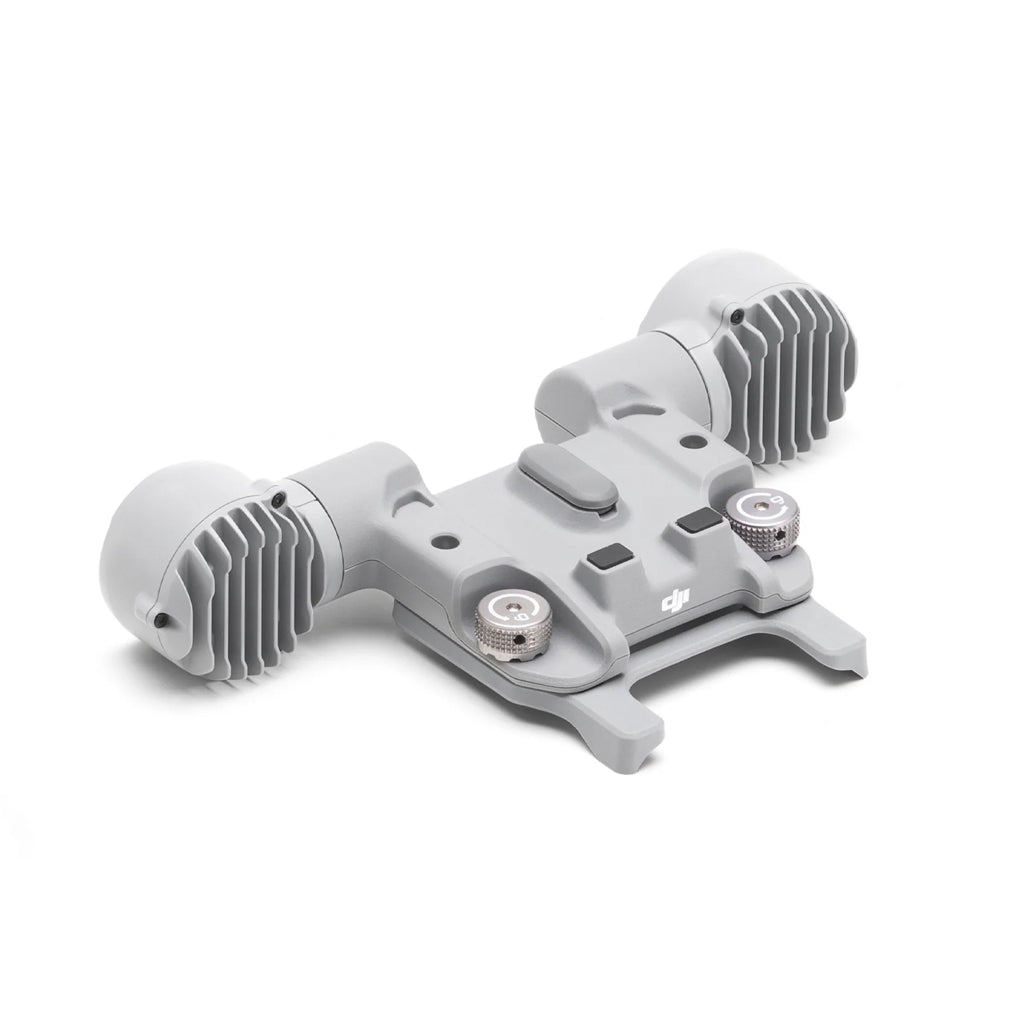

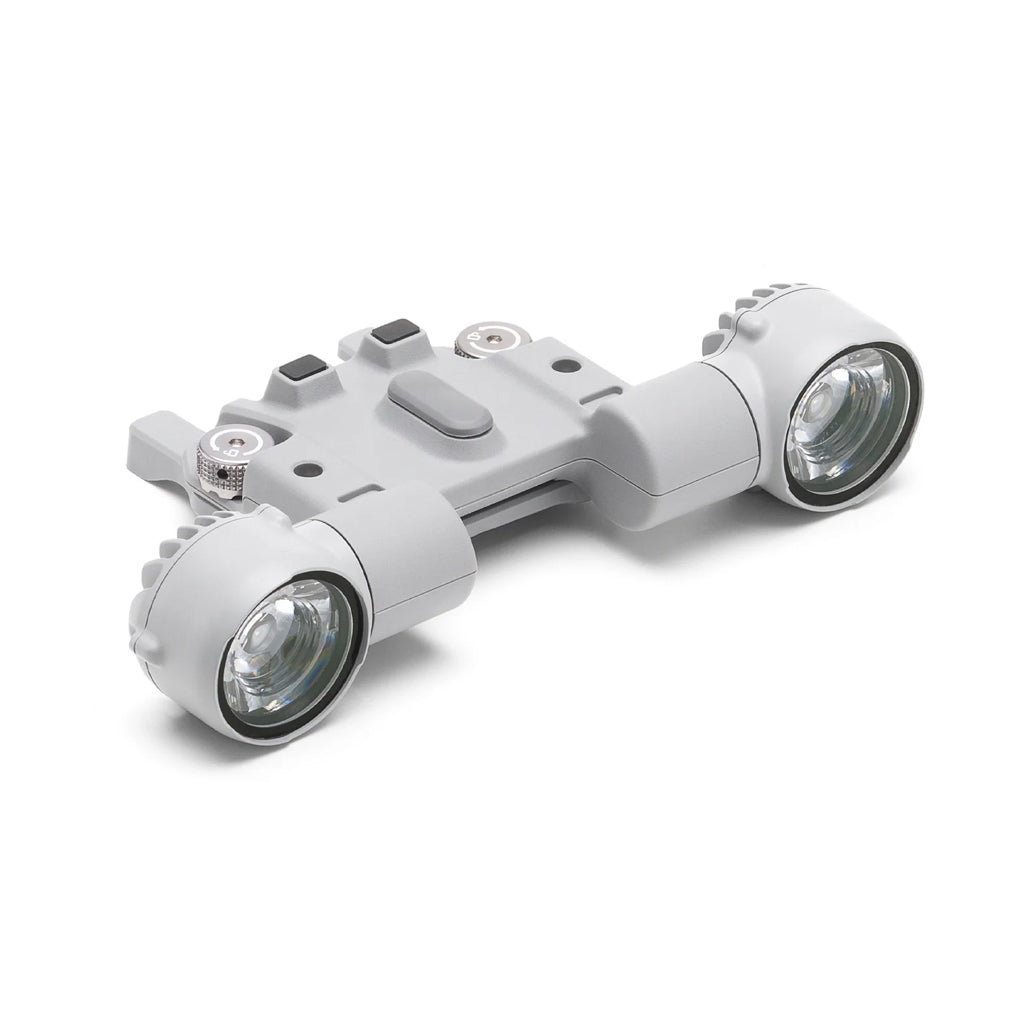

DJI Matrice 4 Series AL1 Spotlight

The DJI AL1 Spotlight supports two modes: always-on and strobe. It can clearly illuminate subjects even from a distance of 100 meters. Additionally, it can intelligently link with the gimbal, following the camera's movements to ensure the illuminated area matches the camera's view.

It also offers a wide FOV lighting mode, which can light up a broader area when in wide-angle mode. The spotlight and speaker can be used independently or in combination, meeting the needs of more operational scenarios.

Specifications

• Weight: 99 g (including bracket）
• Approx. 91 g (excluding bracket)
• 95×164×30 mm (L×W×H, including bracket）
• 79×164×28 mm (L×W×H, without bracket)
• Max Power: 32 W
• Illuminance: 4.3±0.2 lux @ 100 meters, 17±0.2 lux @ 50 meters
• Effective Illumination Angle: 23°(10% relative illuminance)
• Effective Illumination Area: 1,300 square meters @ 100 meters (10% relative illuminance, Normal Mode)
• 2,200 square meters @ 100 meters (10% relative illuminance, Wide fov Mode)
• Modes: Always-on and strobe
• Gimbal Mechanical Range (Tilt): -135° to 45°
• Gimbal Controllable Range (Tilt): -90° to 35°
• Max Control Speed (tilt): 120°/s
• Gimbal Alignment Accuracy: ±0.1°
• Operating Temperature: -4° to 122° F (-20° to 50° C)
• Mounting Method: Quick-release hand-tightened screws

Compatibility

• Support for use with DJI Matrice 4 Series aircraft

In The Box

• Spotlight × 1
• Spare Screw × 2
• Hex Key × 1
